MEGI^®-Bushes - MEGI^®-Ring

For the elastical mounting of axles and applicable as flexibles knuckle joints

Type of load / -directions:

• axial
• radial
• cardanical
• torsional
• and combinations of above

Statically maximum load:

• radial bis 17,7 kN
• axial bis 6,3 kN

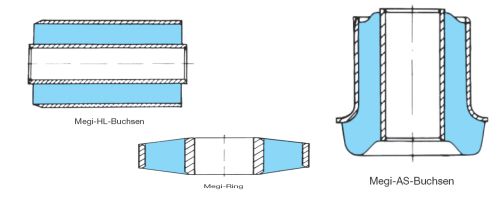

Types:

MEGI^®-Bushes und MEGI^®-Rings are available in various
sizes and types as follows:

• MEGI^®-HL-Bushes
• MEGI^®-AS-Bushes
• MEGI^®-Rings

Details and technical datas like dimensions and loads are available from the chapter of the MEGI®-catalogue by following the link:

Datasheet:              MEGI^®-Bushes / MEGI^®-Rings

If you are looking for a special MEGI® part number you are welcome to use the search function on this page above.

Examples of use:

For mounting of:

• axles  / handlebars
• maschines / aggregates / engines
• superstructure
• applicable as flexible knuckle joint

Indications:

• Maximum axial load depends on the axial prestressing
• For transfering of torsional moments and axial loads it is very important that the inner tuba as well as the outer tube ist fasten very well
